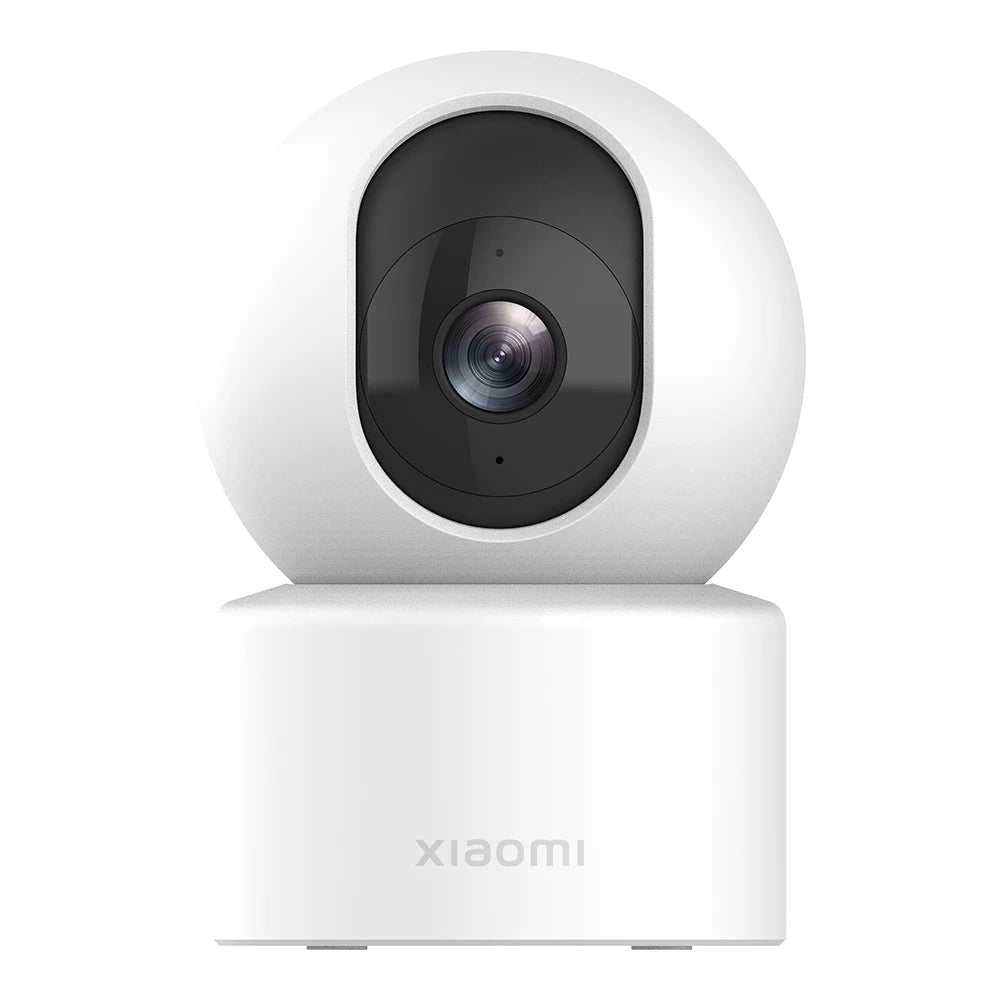

Xiaomi - Smart Camera C301

The Xiaomi Smart Camera C301 is a versatile indoor security camera designed to provide clear 2K monitoring, intelligent detection, and enhanced privacy for your home or office. Its 3MP camera with 2304 × 1296 resolution delivers detailed images, while the large-aperture 4P lens helps provide clearer and brighter footage. The dual-axis motorized design offers 360° horizontal and 107° vertical coverage, allowing you to monitor a wide area remotely through the Xiaomi Home app. With AI-based human detection, full-color night vision, two-way voice communication, and physical lens shielding, the C301 provides reliable monitoring while giving you greater control over privacy and security.

Key Features

3MP 2K Resolution: Captures detailed video at 2304 × 1296 resolution for clearer home monitoring.
4P Large-Aperture Lens: Helps deliver brighter, sharper images with improved detail in challenging lighting conditions.

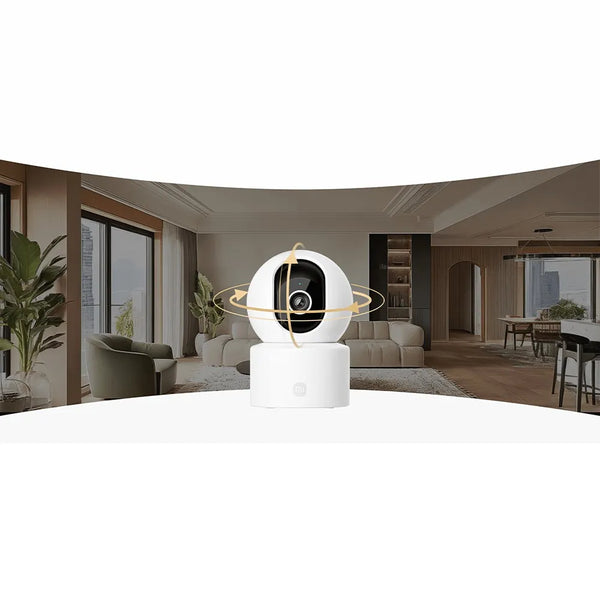

360° Pan & 107° Tilt: Dual-axis motorized movement provides extensive horizontal and vertical coverage.
Full-Color Night Vision: Helps maintain color detail in low-light conditions for improved nighttime monitoring.
940nm Infrared Night Vision: Six infrared LEDs provide clear monitoring in darkness without a noticeable red glow.
AI Human Detection: Local AI detects people and can send alerts to your smartphone when human activity is identified.
Motion Tracking: Automatically follows detected movement to help keep subjects within view.
Physical Privacy Shield: The lens can be physically hidden inside the camera body when privacy is required.
Two-Way Voice Communication: Built-in microphone and speaker enable real-time communication through the camera.
Noise Cancellation: Helps provide clearer two-way conversations by reducing unwanted background noise.
H.265 Video Encoding: Compresses video efficiently to reduce bandwidth and storage requirements.
Secure Data Protection: Features an MJA1 security chip and AES-128 encryption for enhanced protection of stored and transmitted data.
Flexible Storage: Supports microSD cards from 8GB to 256GB as well as cloud storage.
Smart Home Integration: Works with the Xiaomi Home app and supports compatible Google Assistant and Amazon Alexa voice controls.
Flexible Installation: Can be installed on a surface or mounted to a wall, with mounting hardware included.

Specifications

Brand: Xiaomi
Product Name: Xiaomi Smart Camera C301
Model: MBC23
Product Type: Indoor Smart Security Camera
Camera Resolution: 3MP
Video Resolution: 2304 × 1296 (2K)
Lens: 4P Large-Aperture Lens
Aperture: F1.4
Pan Range: 360° horizontal
Tilt Range: 107° vertical
Night Vision: Full-color low-light + 940nm infrared
Infrared LEDs: 6 × 940nm
AI Detection: Local AI human detection
Motion Tracking: Supported
Audio: Two-way voice communication with noise cancellation
Video Codec: H.265
Privacy: Physical lens shielding
Security: MJA1 security chip, AES-128 encryption
Wireless Connectivity: Wi-Fi 2.4GHz, IEEE 802.11 b/g/n
Storage: microSD 8GB–256GB / Cloud storage
App: Xiaomi Home / Mi Home
Compatibility: Android 8.0 or later / iOS 12.0 or later
Rated Input: 5V ⎓ 1A
Operating Temperature: -10°C to 45°C
Dimensions: 78 × 76 × 115 mm
Net Weight: Approximately 222 g
Mounting: Desktop or wall mounting
Package Contents: Xiaomi Smart Camera C301, charging cable, user manual, screws and base, wall plugs and mounting template sticker.
